内存马

前置知识

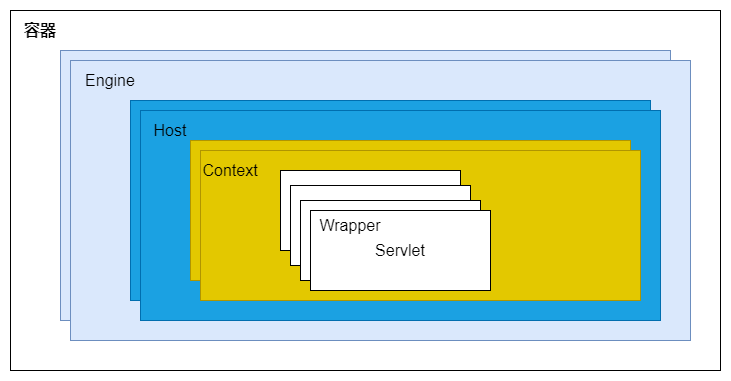

组件

1. 根据协议、端口找到连接器（如8080找到http连接器），连接器确认Service组件，Service组件又包含一个Engine
2. Mapper组件根据域名确认Host容器
3. Mapper根据url路径确认context容器
4. Mapper查询web.xml，根据Servlet映射确认具体的Wrapper和Servlet

（Context是上下文，包含servlet运行环境，wrapper是包装器，负责管理一个servlet的装载、初始化等操作）

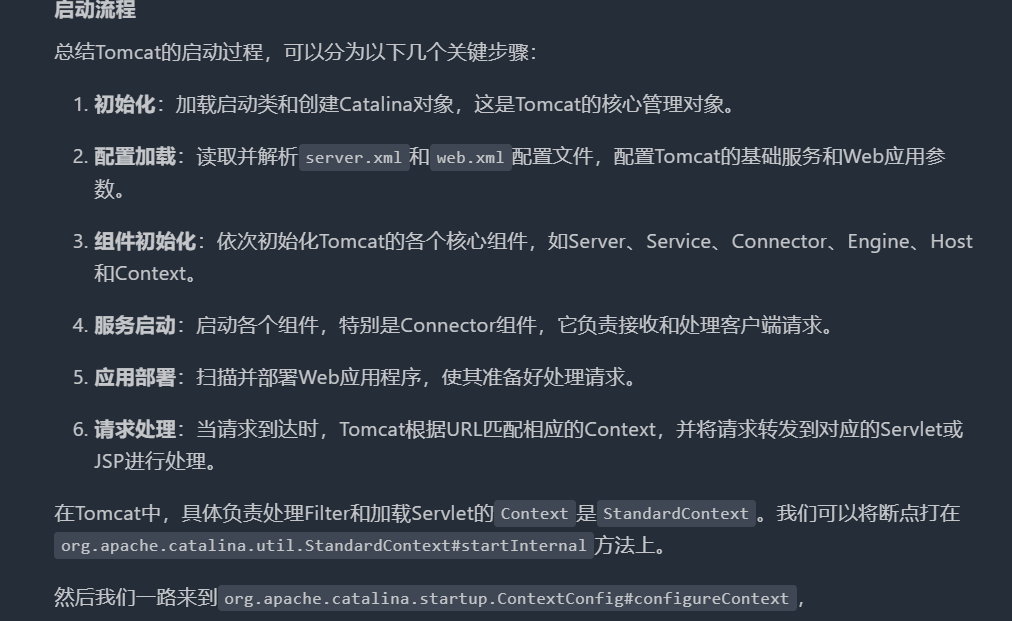

tomcat加载

对于内存马，比较重要的是standardContext这个上下文

private void configureContext(WebXml webxml) {
	......

    // 遍历web.xml中的Context参数，并将它们添加到Context中
    Iterator var2 = webxml.getContextParams().entrySet().iterator();
	for (Entry<String, String> entry : webxml.getContextParams().entrySet()) {
            context.addParameter(entry.getKey(), entry.getValue());
    }

	......

    // 添加Filter定义
    for (FilterDef filter : webxml.getFilters().values()) {
        if (filter.getAsyncSupported() == null) {
            filter.setAsyncSupported("false");
        }
        context.addFilterDef(filter);
    }

    // 添加Filter映射
    for (FilterMap filterMap : webxml.getFilterMappings()) {
        context.addFilterMap(filterMap);
    }

	......

    // 添加应用监听器
    for (String listener : webxml.getListeners()) {
        context.addApplicationListener(listener);
    }

	......

    // 添加Servlet定义
    for (ServletDef servlet : webxml.getServlets().values()) {
        Wrapper wrapper = context.createWrapper();
        // Description is ignored
        // Display name is ignored
        // Icons are ignored

        // jsp-file gets passed to the JSP Servlet as an init-param

        if (servlet.getLoadOnStartup() != null) {
            wrapper.setLoadOnStartup(servlet.getLoadOnStartup().intValue());
        }
        if (servlet.getEnabled() != null) {
            wrapper.setEnabled(servlet.getEnabled().booleanValue());
        }
        wrapper.setName(servlet.getServletName());
        Map<String,String> params = servlet.getParameterMap();
        for (Entry<String, String> entry : params.entrySet()) {
            wrapper.addInitParameter(entry.getKey(), entry.getValue());
        }
        wrapper.setRunAs(servlet.getRunAs());
        Set<SecurityRoleRef> roleRefs = servlet.getSecurityRoleRefs();
        for (SecurityRoleRef roleRef : roleRefs) {
            wrapper.addSecurityReference(
                    roleRef.getName(), roleRef.getLink());
        }
        wrapper.setServletClass(servlet.getServletClass());
        MultipartDef multipartdef = servlet.getMultipartDef();
        if (multipartdef != null) {
            long maxFileSize = -1;
            long maxRequestSize = -1;
            int fileSizeThreshold = 0;

            if(null != multipartdef.getMaxFileSize()) {
                maxFileSize = Long.parseLong(multipartdef.getMaxFileSize());
            }
            if(null != multipartdef.getMaxRequestSize()) {
                maxRequestSize = Long.parseLong(multipartdef.getMaxRequestSize());
            }
            if(null != multipartdef.getFileSizeThreshold()) {
                fileSizeThreshold = Integer.parseInt(multipartdef.getFileSizeThreshold());
            }

            wrapper.setMultipartConfigElement(new MultipartConfigElement(
                    multipartdef.getLocation(),
                    maxFileSize,
                    maxRequestSize,
                    fileSizeThreshold));
        }
        if (servlet.getAsyncSupported() != null) {
            wrapper.setAsyncSupported(
                    servlet.getAsyncSupported().booleanValue());
        }
        wrapper.setOverridable(servlet.isOverridable());
        context.addChild(wrapper);
    }

    // 添加Servlet映射
	for (Entry<String, String> entry :
            webxml.getServletMappings().entrySet()) {
        context.addServletMappingDecoded(entry.getKey(), entry.getValue());
    }

	......

}

实现
